Description

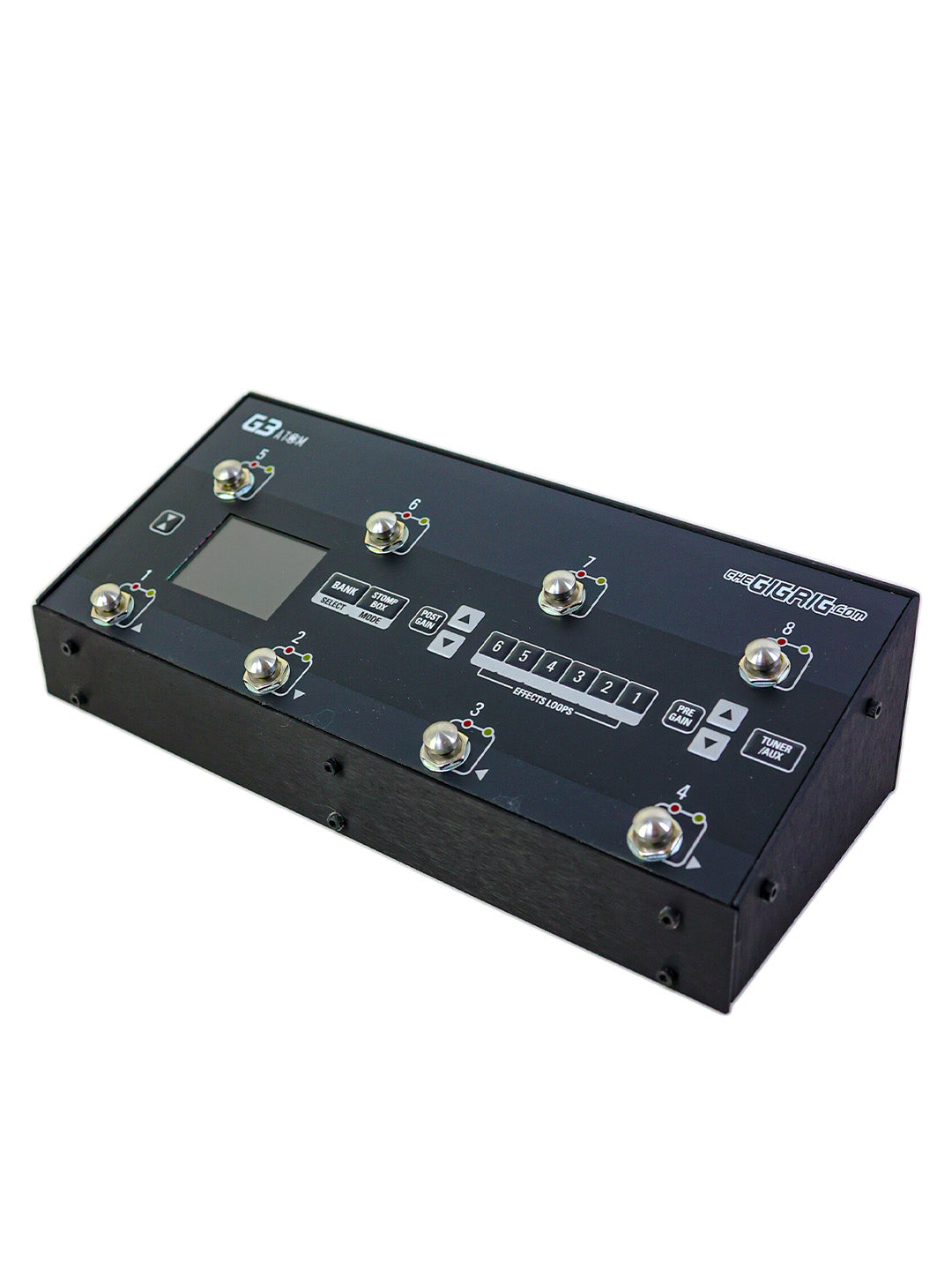

pedal switching system The GigRig G3 Atom Switching System - UK 2021Here is a GigRig G3 Atom effects switching system, a next generation pedalboard control unit designed to deliver exceptional signal clarity, routing flexibility, and professional grade performance for serious touring and studio players. Built on the foundation of the acclaimed G2 platform, the G3 Atom represents a significant step forward in transparent effects management and pedalboard integration. This example features a fully re engineered signal
Here is a GigRig G3 Atom effects switching system, a next-generation pedalboard control unit designed to deliver exceptional signal clarity, routing flexibility, and professional-grade performance for serious touring and studio players. Built on the foundation of the acclaimed G2 platform, the G3 Atom represents a significant step forward in transparent effects management and pedalboard integration.
This example features a fully re-engineered signal path designed to preserve the natural tone of your instruments and effects without coloration or compromise. It allows players to run complex pedalboard setups while maintaining absolute clarity, ensuring each effect is heard exactly as intended. Developed in parallel with the larger G3 system, the G3 Atom incorporates extensive refinement through real-world testing, focusing on robustness, usability, and uncompromising tonal integrity.
The unit provides advanced switching capabilities in a compact format, making it ideal for streamlined boards without sacrificing functionality. It is engineered for maximum reliability in both live and studio environments, with a focus on seamless control and intuitive operation.
Condition is excellent with only light signs of use and everything functioning as it should. A premium-grade switching system for players seeking ultimate control, flexibility, and absolute signal transparency across their entire pedalboard setup.
Specifications:
Year: 2021
Country: UK
Model: The GigRig G3 Atom Switching System
Type: MIDI-enabled pedalboard switching system
Power: 9V DC (2.1mm centre negative) @ 850mA (recommended The GigRig Generator power supply)
Current Draw: 850mA
Screen: Approx. 5 x 3.8cm (1.96” x 1.5”)
Input Handling: Max 16.5V peak-to-peak in true bypass; bandwidth 4Hz–100kHz
Input Impedance: 3.3M Ohm
Outputs: Out 1 true bypass (signal path with input/output amps off, must be grounded at all times); Out 2 buffered and isolated via Hi-Definition Isolation
Switching: G2 Passive True Bypass Matrix effects loops
Control: TRS remote switching capability for external gear
MIDI: Full MIDI in and out
Dimensions: W 30cm x D 13cm x H 7.8cm (back), 5.5cm (front incl. footswitches) / 11.65” x 5.1” x 3.07”
Weight: 1.5kg / 3.30lbs
Signal Path: Pre-gain/buffer and post-gain stereo operation with high headroom and wide bandwidth
Condition: Barely used, presents as new and in perfect working condition
Accessories: Comes in original box with power supply
Use: Professional-grade switching system for complex pedalboards in live and studio environments
